SceneTree Class Reference

Manages a tree structure of SceneNodes, facilitating scene graph operations. More...

#include <scene.h>

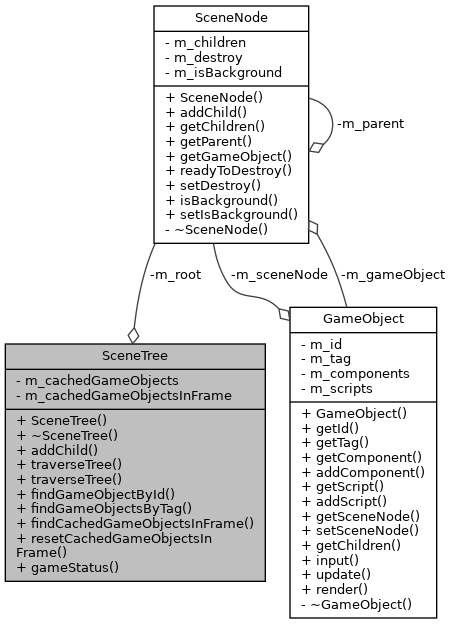

Collaboration diagram for SceneTree:

Public Member Functions
	SceneTree ()
	Constructor for creating a root node of the scene tree. More...
	~SceneTree ()
	Destructor, cleans up the tree resources. More...
void	addChild (GameObject *child, bool isBackground=false)
	Adds a child GameObject to the scene tree. More...
void	traverseTree (std::function< void(SceneNode *)> callback)
	Traverses the entire tree, executing a callback on each node. More...
void	traverseTree (SceneNode *node, std::function< void(SceneNode *)> callback)
	Traverses the tree from a specific node, executing a callback on each node. More...
GameObject *	findGameObjectById (std::string id)
	Finds a GameObject by its ID. More...
std::vector< GameObject * >	findGameObjectsByTag (std::string tag)
	Finds GameObjects by a tag. More...
std::vector< GameObject * > &	findCachedGameObjectsInFrame (std::string tag)
	Retrieves the game objects cached by tag. More...
void	resetCachedGameObjectsInFrame ()
	Resets the cached game objects for a new frame, clearing the current frame's cache. More...
int	gameStatus ()
	Retrieves the current game status. More...

Private Attributes
SceneNode *	m_root
	Root node of the scene tree. More...
std::unordered_map< std::string, GameObject * >	m_cachedGameObjects
	Cache for faster lookup of GameObjects by ID. More...
std::unordered_map< std::string, std::vector< GameObject * > >	m_cachedGameObjectsInFrame
	Cache for faster lookup of GameObjects by tag within a frame. More...

Detailed Description

Manages a tree structure of SceneNodes, facilitating scene graph operations.

SceneTree provides mechanisms to add children, traverse the tree, and perform lookups for game objects based on IDs and tags.

Definition at line 108 of file scene.h.

Constructor & Destructor Documentation

SceneTree()

SceneTree::SceneTree

(

)

Constructor for creating a root node of the scene tree.

Definition at line 79 of file scene.cpp.

~SceneTree()

SceneTree::~SceneTree

(

)

Destructor, cleans up the tree resources.

Definition at line 83 of file scene.cpp.

Member Function Documentation

addChild()

void SceneTree::addChild	(	GameObject *	child,
		bool	isBackground = false
	)

Adds a child GameObject to the scene tree.

Parameters

child	Pointer to the GameObject to add.
isBackground	Flag indicating if the child is part of the background.

Definition at line 87 of file scene.cpp.

findCachedGameObjectsInFrame()

std::vector< GameObject * > & SceneTree::findCachedGameObjectsInFrame

(

std::string

tag

)

Retrieves the game objects cached by tag.

Parameters

tag	The tag string to search for.

Returns

Vector of GameObjects with the specified tag.

Definition at line 139 of file scene.cpp.

findGameObjectById()

GameObject * SceneTree::findGameObjectById

(

std::string

id

)

Finds a GameObject by its ID.

Parameters

id	The ID string of the GameObject to find.

Returns

Pointer to the GameObject if found, nullptr otherwise.

Definition at line 104 of file scene.cpp.

findGameObjectsByTag()

std::vector< GameObject * > SceneTree::findGameObjectsByTag

(

std::string

tag

)

Finds GameObjects by a tag.

Parameters

tag	The tag string to search for.

Returns

Vector of GameObjects with the specified tag.

Definition at line 114 of file scene.cpp.

gameStatus()

int SceneTree::gameStatus

(

)

Retrieves the current game status.

Returns

Integer representing the current game status.

Definition at line 147 of file scene.cpp.

resetCachedGameObjectsInFrame()

void SceneTree::resetCachedGameObjectsInFrame

(

)

Resets the cached game objects for a new frame, clearing the current frame's cache.

Definition at line 143 of file scene.cpp.

traverseTree() [1/2]

void SceneTree::traverseTree	(	SceneNode *	node,
		std::function< void(SceneNode *)>	callback
	)

Traverses the tree from a specific node, executing a callback on each node.

Parameters

node	Starting node for traversal.
callback	Function to execute for each node.

Definition at line 95 of file scene.cpp.

traverseTree() [2/2]

void SceneTree::traverseTree

(

std::function< void(SceneNode *)>

callback

)

Traverses the entire tree, executing a callback on each node.

Parameters

callback

Function to execute for each node.

Definition at line 91 of file scene.cpp.

Member Data Documentation

m_cachedGameObjects

std::unordered_map<std::string, GameObject*> SceneTree::m_cachedGameObjects

private

Cache for faster lookup of GameObjects by ID.

Definition at line 176 of file scene.h.

m_cachedGameObjectsInFrame

std::unordered_map<std::string, std::vector<GameObject*> > SceneTree::m_cachedGameObjectsInFrame

private

Cache for faster lookup of GameObjects by tag within a frame.

Definition at line 177 of file scene.h.

m_root

SceneNode* SceneTree::m_root

private

Root node of the scene tree.

Definition at line 174 of file scene.h.

---

The documentation for this class was generated from the following files:

• Engine/include/scene.h
• Engine/src/scene.cpp
