Component for handling the transformation of game objects. More...

#include <transform.h>

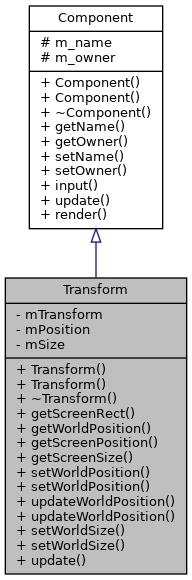

Inheritance diagram for Transform:

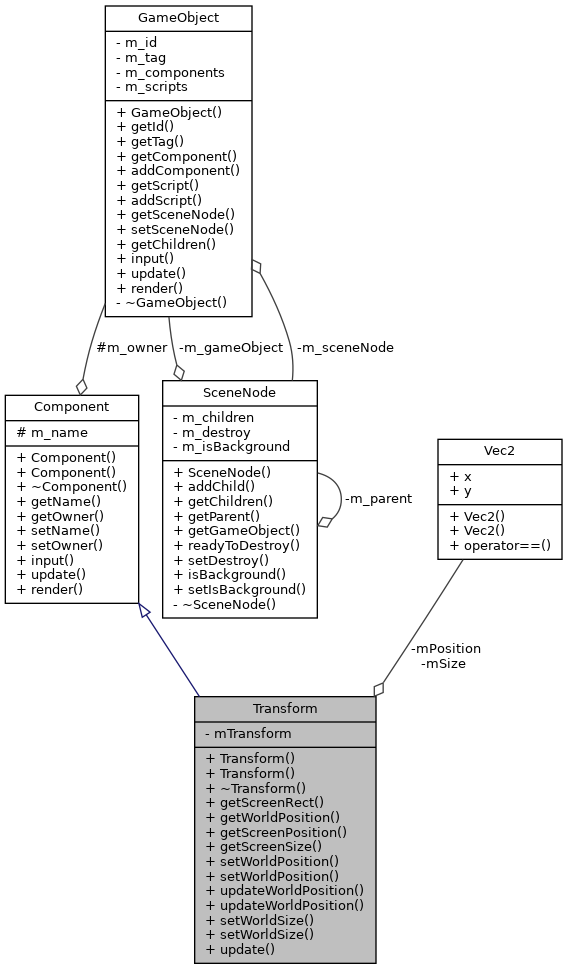

Collaboration diagram for Transform:

Public Member Functions
	Transform ()
	Default constructor. More...

	Transform (int x, int y)
	Constructor that initializes the Transform with position. More...

	~Transform ()
	Destructor. More...

SDL_Rect *	getScreenRect ()
	Get the SDL_Rect describing the position and size on the screen. More...

Vec2	getWorldPosition ()
	Get the world space position of the Transform. More...

Vec2	getScreenPosition ()
	Get the screen space position calculated from world space. More...

Vec2	getScreenSize ()
	Get the size of the Transform in screen space. More...

void	setWorldPosition (float x, float y)
	Set the world space position of the Transform. More...

void	setWorldPosition (Vec2 pos)
	Set the world space position of the Transform using a Vec2. More...

void	updateWorldPosition (float dx, float dy)
	Update the world position by a delta value. More...

void	updateWorldPosition (Vec2 dpos)
	Update the world position by a delta position. More...

void	setWorldSize (float w, float h)
	Set the world space size of the Transform. More...

void	setWorldSize (Vec2 size)
	Set the world space size of the Transform using a Vec2. More...

void	update ()
	Render function for the Transform component, handling visual updates. More...

Public Member Functions inherited from Component
	Component ()
	Default constructor for the Component. More...

	Component (std::string name)
	Constructs a Component with a specified name. More...

virtual	~Component ()
	Virtual destructor for safe polymorphic use. More...

std::string	getName ()
	Retrieves the name of the component. More...

GameObject *	getOwner ()
	Retrieves the GameObject that owns this component. More...

void	setName (std::string name)
	Sets the name of the component. More...

void	setOwner (GameObject *owner)
	Sets the GameObject owner of this component. More...

virtual void	input ()
	Virtual method for handling input, intended to be overridden by derived components. More...

virtual void	render ()
	Virtual method for rendering, intended to be overridden by derived components. More...

Private Attributes
SDL_Rect *	mTransform
	Holds position and size relative to the screen. More...

Vec2	mPosition
	Position in world space. More...

Vec2	mSize
	Size in world space. More...

Additional Inherited Members
Protected Attributes inherited from Component
std::string	m_name
	Name of the component, useful for identification or debugging. More...

GameObject *	m_owner
	Pointer to the GameObject that owns this component. More...

Detailed Description

Component for handling the transformation of game objects.

This class manages both the world and screen transformations of game objects, allowing them to be positioned and sized accurately in the game world.

Definition at line 23 of file transform.h.

Constructor & Destructor Documentation

◆ Transform() [1/2]

Transform::Transform ( )

Default constructor.

Definition at line 9 of file transform.cpp.

◆ Transform() [2/2]

Transform::Transform	(	int	x,
		int	y
	)

Constructor that initializes the Transform with position.

Parameters

x	Initial x-coordinate of the world position.
y	Initial y-coordinate of the world position.

Definition at line 16 of file transform.cpp.

◆ ~Transform()

Transform::~Transform ( )

Destructor.

Definition at line 24 of file transform.cpp.

Member Function Documentation

◆ getScreenPosition()

Vec2 Transform::getScreenPosition ( )

Get the screen space position calculated from world space.

Returns: A Vec2 object representing the screen position.

Definition at line 39 of file transform.cpp.

◆ getScreenRect()

SDL_Rect * Transform::getScreenRect ( )

Get the SDL_Rect describing the position and size on the screen.

Returns: Pointer to an SDL_Rect struct representing the screen rectangle.

Definition at line 29 of file transform.cpp.

◆ getScreenSize()

Vec2 Transform::getScreenSize ( )

Get the size of the Transform in screen space.

Returns: A Vec2 object representing the screen size.

Definition at line 44 of file transform.cpp.

◆ getWorldPosition()

Vec2 Transform::getWorldPosition ( )

Get the world space position of the Transform.

Returns: A Vec2 object representing the world position.

Definition at line 34 of file transform.cpp.

◆ setWorldPosition() [1/2]

void Transform::setWorldPosition	(	float	x,
		float	y
	)

Set the world space position of the Transform.

Parameters

x	New x-coordinate of the world position.
y	New y-coordinate of the world position.

Definition at line 49 of file transform.cpp.

◆ setWorldPosition() [2/2]

void Transform::setWorldPosition ( Vec2 pos )

Set the world space position of the Transform using a Vec2.

Parameters

pos	Vec2 representing the new world position.

Definition at line 54 of file transform.cpp.

◆ setWorldSize() [1/2]

void Transform::setWorldSize	(	float	w,
		float	h
	)

Set the world space size of the Transform.

Parameters

w	Width in world space.
h	Height in world space.

Definition at line 59 of file transform.cpp.

◆ setWorldSize() [2/2]

void Transform::setWorldSize ( Vec2 size )

Set the world space size of the Transform using a Vec2.

Parameters

size	Vec2 representing the new size in world space.

Definition at line 64 of file transform.cpp.

◆ update()

void Transform::update ( )

virtual

Render function for the Transform component, handling visual updates.

Reimplemented from Component.

Definition at line 81 of file transform.cpp.

◆ updateWorldPosition() [1/2]

void Transform::updateWorldPosition	(	float	dx,
		float	dy
	)

Update the world position by a delta value.

Parameters

dx	Change in the x-coordinate.
dy	Change in the y-coordinate.

Definition at line 69 of file transform.cpp.

◆ updateWorldPosition() [2/2]

void Transform::updateWorldPosition ( Vec2 dpos )

Update the world position by a delta position.

Parameters

dpos	Vec2 representing the change in position.

Definition at line 75 of file transform.cpp.

Member Data Documentation

◆ mPosition

Vec2 Transform::mPosition

private

Position in world space.

Definition at line 26 of file transform.h.

◆ mSize

Vec2 Transform::mSize

private

Size in world space.

Definition at line 27 of file transform.h.

◆ mTransform

SDL_Rect* Transform::mTransform

private

Holds position and size relative to the screen.

Definition at line 25 of file transform.h.

The documentation for this class was generated from the following files:

Engine/include/transform.h
Engine/src/components/transform.cpp
